FloodMaster RS-090-E+ Washing Machine Leak Detection & Automatic Shut-Off System (Integrated Outlet Box)

Stop laundry room floods before they start. Engineered for multi-family, commercial and residential applications, this recessed wall-box system delivers around-the-clock leak defence. Dedicated hot and cold automatic shut-off valves and integrated water hammer arrestors stop water damage at the source.

Key features

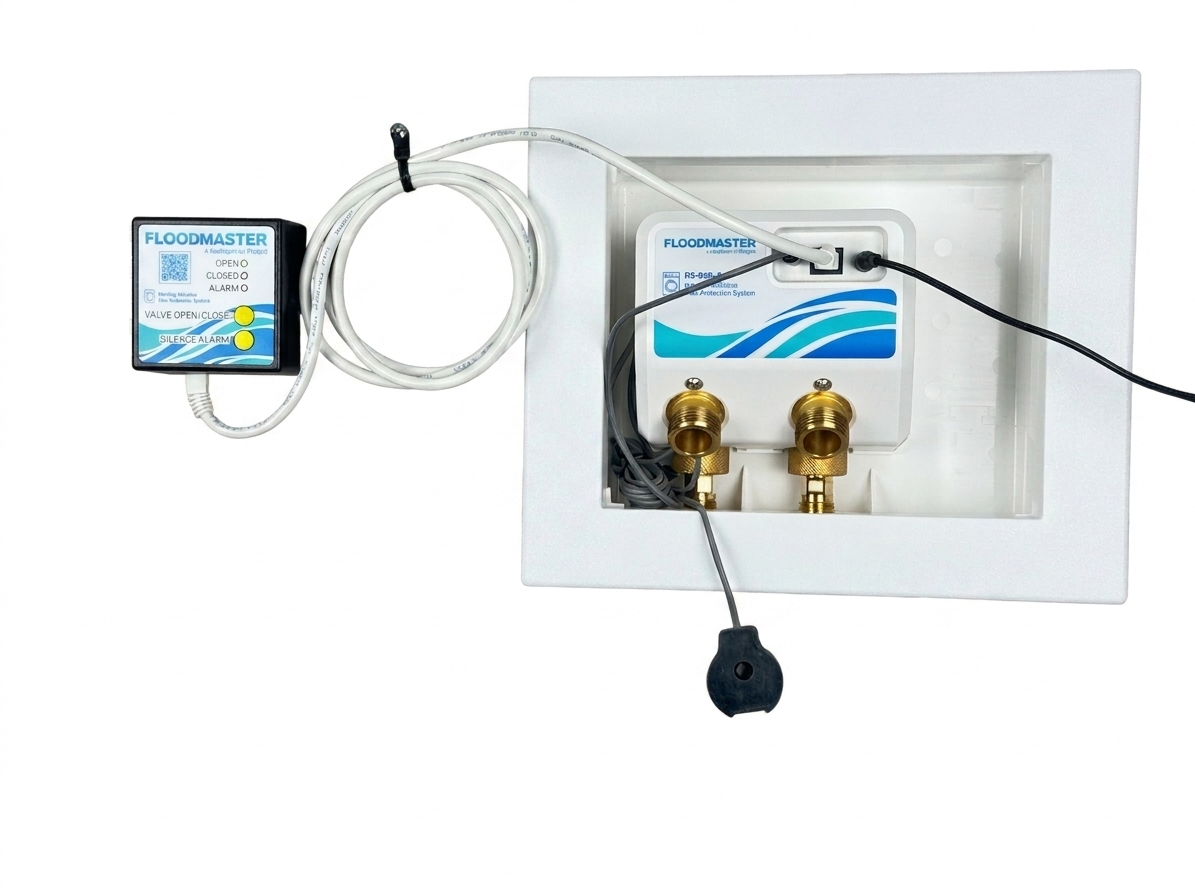

• Integrated rough-in assembly: recessed wall-mount outlet box with a dual-port ½" full-port brass motorized ball valve assembly, integrated receiver module, low-profile puddle sensor with 8' lead wire and finished faceplate
• Water hammer protection: dual integral ASSE 1010-rated water hammer arrestors factory-fitted on both hot and cold supply lines
• Automatic valve exercise: cycles both valves every two weeks to prevent mineral buildup and valve seizure
• Local alarm and reset: 86 dB audible alarm, LED fault indicators and one-touch manual reset
• BMS integration: low-voltage output contacts tie into building automation systems, alarm panels or shut-off networks
• Insurance alignment: engineered to meet insurer risk mitigation standards for multi-unit properties

Applications

• Multi-family new construction: rough-in ready unit drops into 16" on-centre stud bays
• Commercial and mixed-use: point-of-use protection for residential floors over retail, amenity or mechanical spaces
• Retrofit: replaces conventional washing machine valve boxes during unit turnovers or plumbing upgrades

Installation specs

• Wall opening: 7.75" W x 9" H x 3.75" D
• Feed line spacing: 2.52" on centre
• Valve connections: ½" NPT inlet and outlet
• Power: standard 120V AC, 60Hz outlet within 6' of the receiver
• Sensor cable: 8'
