RS-096 Plug-In Water Leak Detection & Alarm System

Get an audible warning when water reaches a monitored area. The RS-096 plug-in water leak detection and alarm system pairs a wired sensor with a receiver to help you identify leaks near appliances, plumbing and water-fed equipment.

Detection and alarm, without a shut-off valve

The RS-096 sounds an 83 dB alarm when water is detected. It is a detection and alarm system, not a complete automatic water shut-off kit. If stopping the water supply is part of your goal, ask us to recommend an appropriate shut-off system.

Where to use it

• HVAC condensate pans and air-conditioning equipment
• Water heaters, dishwashers and laundry areas
• Under sinks and near sump areas
• Mechanical spaces and areas near sensitive equipment

Features

• Plugs into a standard 120V wall outlet
• Factory-prewired components for installation
• Sensor can be mounted flush to the floor or elevated to the intended detection height
• Normally open and normally closed dry contacts for compatible building-management or security-panel integration
• Reusable and testable
• Supports additional wired sensors for broader coverage

Have your installer confirm placement and any integration requirements before installation.

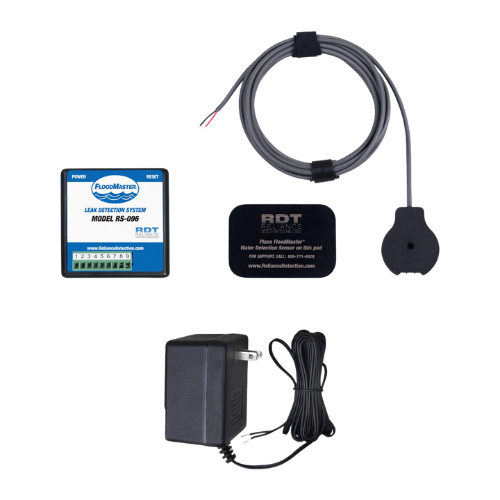

Kit contents

• Receiver box
• Magnetized water sensor with an 8-foot lead
• Metal sensor-placement plate
• 120V AC power plug with a 12-foot lead

Expand your coverage

RSA-101 water sensors are available with 8, 25, 50 and 100-foot leads. Share the areas you want to monitor and approximate cable routes so we can help you select a configuration.

A plenum-rated RS-096-MK6 configuration is also available. Confirm the required model for your application before ordering.

Documents and next steps

Browse product data sheets for the standard and MK6 configurations.

Request an RS-096 recommendation and quote, or get help planning your leak detection system.
