Stop Laundry Room Floods Before They Start

Engineered for multi-family, commercial, and residential applications, this recessed wall-box system delivers 24/7 leak defense. Featuring dedicated hot and cold automatic shut-off valves alongside integrated water hammer arrestors, it stops catastrophic water damage at the source.

Key Technical & Mechanical Features

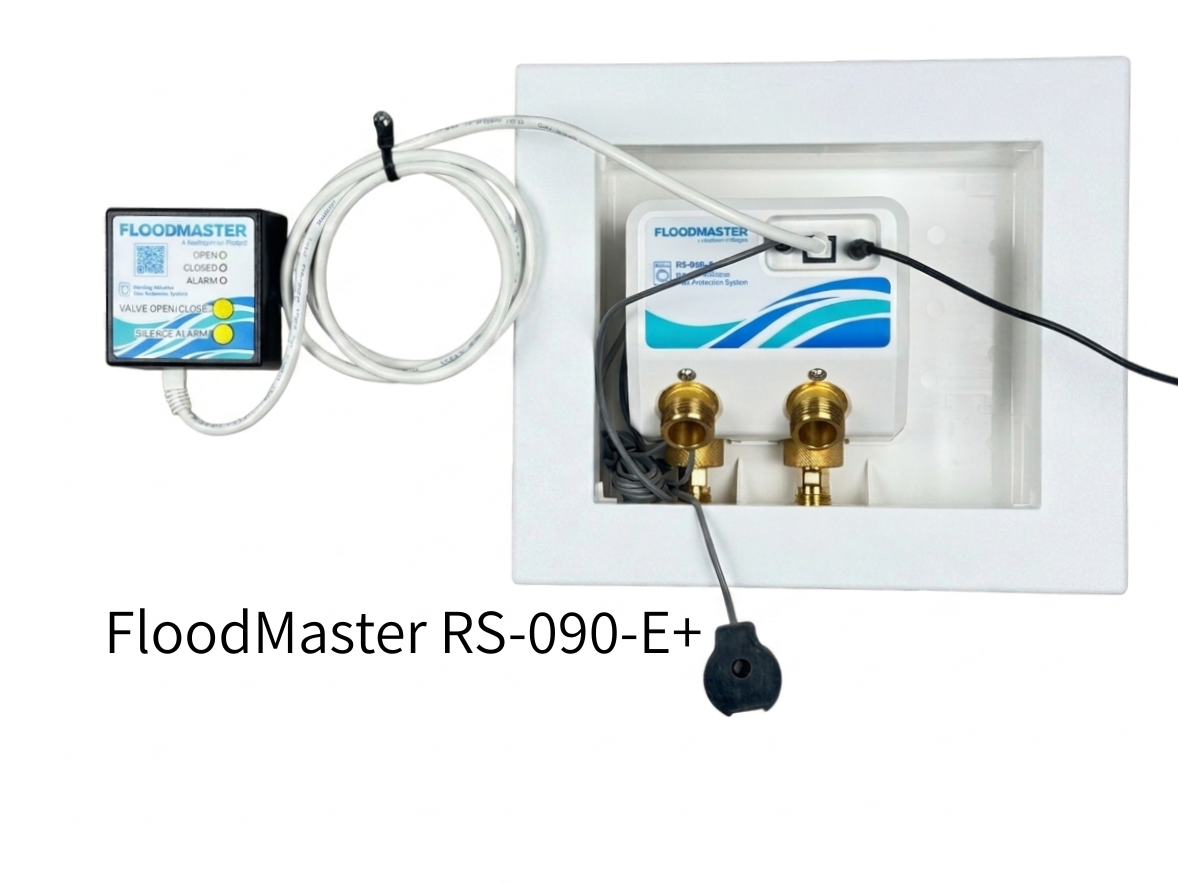

  • Integrated Rough-In Assembly: Recessed wall-mount outlet box housing a dual-port 1/2" full-port brass motorized ball valve assembly, integrated receiver module, low-profile puddle sensor with 8' factory lead wire, and finished faceplate.
  • Code-Compliant Water Hammer Protection: Dual integral ASSE 1010-rated water hammer arrestors factory-fitted directly on both hot and cold supply lines to mitigate hydraulic shock, eliminate pipe chatter, and protect inline joints.
  • Automated Cycle & Anti-Seize Exercise: Microprocessor-controlled automatic exercise routine cycles both valves bi-weekly to prevent mineral accumulation, scale buildup, and valve seizure over extended static periods.
  • Local Annunciation & Interface: Wall-mountable control interface featuring an 86 dB audible alarm, visual LED fault indicators, and a one-touch manual reset toggle to return to normal operation without component replacement.
  • BMS & Auxiliary Integration: Low-voltage output contacts facilitate straightforward tie-in to building automation systems (BMS), third-party alarm panels, or local shut-off networks.
  • Risk Management Alignment: Engineered to meet insurer risk mitigation standards for multi-unit high-rise properties, qualifying owners and HOAs for deductible credits and policy discounts.

Target Applications & Project Delivery

  • Multi-Family High-Rise & Mid-Rise (New Construction): Standardized, rough-in ready unit drops directly into 16" on-center stud bays, minimizing installation labor while securing stack risers against washing machine hose bursts and supply line failures.
  • Commercial Tenant Improvements & Mixed-Use: Direct point-of-use risk mitigation for residential floors situated over occupied retail spaces, amenity areas, or high-value mechanical rooms.
  • Retrofit & Building Modernization: Sized to replace conventional passive washing machine valve boxes during unit turnovers, laundry room refits, or building-wide plumbing infrastructure upgrades.

RS-090-E+ Unwrapped

  • Custom Brass Valve with Water Hammer Arrestors

  • Heavy-Duty Brass Gearing and Back View

Pre-Installation & Technical Specs

Please confirm your rough-in dimensions and installation clearances before installing:

  • Required Wall Opening: 7.75” W x 9” H x 3.75” D
  • Feed Line Spacing: 2.52” On-Center (Hot & Cold alignment)
  • Valve Connections: 1/2" NPT Inlet & Outlet
  • Power Requirements: Standard 120V AC, 60Hz outlet located within 6 feet of the receiver
  • Sensor Cable Length: 8-foot lead cable on a magnetized, low-profile disc
  • Reset Style: Manual push-button (fully reusable system)

What’s Included in the Box

This commercial-grade kit includes all core components required for a complete, flush installation:

  • Dual 1/2" Automatic Shut-Off Valves: Shuts down both hot and cold lines simultaneously to prevent single-line failures or cross-pressure issues.
  • Pre-Installed Water Hammer Arrestors: Integrated directly into the valve setup to absorb system shock, stop pipe banging, and protect local plumbing lines.
  • Recessed Outlet Box & Paintable Trim Plate: Keeps lines tidy and hidden behind a professional, flush-mount finish.
  • User Control Module & Transformer: Features a simple manual reset button. If a leak occurs, clear the water, press reset, and the system is fully operational again—no single-use replacement cartridges needed.
  • Sensing & Hardware Pack: Comes with 1 magnetized water sensor disc (8' lead wire), 1 metal sensor plate, 4 mounting strips, and a 120V AC power plug (12' lead wire).
